Right, let’s sort this out properly. Nothing worse than being halfway through a lovely ride around Rutland and your Di2 decides to throw a wobbly because the battery’s gone flat. I’ve been caught out before, and trust me, it’s not fun being stuck in one gear on those hills near Empingham!
Quick answer:
- 12-speed Di2: quick press (under half a second) on the rear derailleur button. Solid green = 51–100%, flashing green = 26–50%, red = 1–25%.
- 11-speed Di2: press any shift button for half a second and watch the junction box LED. Green = good, red = charge it.
- Wireless shifters: press both buttons on one shifter. Green = 11–100%, red = 1–10%.
- Charging: the light goes off when it’s fully charged. It doesn’t turn green.
Which Di2 Have You Got?
Quick check first, because 11-speed and 12-speed work differently. If you’ve got wireless shifters and a charge port on your rear derailleur, you’re on 12-speed (Dura-Ace R9200, Ultegra R8100 or 105 R7100). If your shifters are wired and you charge through a junction box under your stem or in your bar end, you’re on 11-speed (Dura-Ace 9070/R9150 or Ultegra 6870/R8050).
Checking Your Main Di2 Battery (12-Speed)
The quickest way to check your main battery is right there on your rear derailleur. Here’s what you need to do:
Press the function button on your rear derailleur for less than half a second. You’ll see an LED light up with different colours telling you exactly where you stand:
- Solid green: 51-100% – you’re golden
- Flashing green: 26-50% – still plenty left
- Red: 1-25% – time to get that charger out
- No LED: Completely dead – you’re in trouble
Important tip: Don’t hold that button too long! If you press it for more than 0.5 seconds, it’ll flash blue and go into Bluetooth pairing mode. We don’t want that right now.
Checking Your Main Di2 Battery (11-Speed)
On 11-speed Di2 it’s the junction box that tells you, not the derailleur. Press and hold any shift button for about half a second and watch the LED on the junction box (under your stem, or the plug in your bar end):
- Solid green (2 seconds): full or close to it – crack on
- Flashing green (5 times): roughly 50–75% – no worries
- Solid red (2 seconds): roughly 25–50% to charge it this week
- Flashing red (5 times): under 25% to charge it tonight
The exact thresholds vary a bit between junction box models, but the rule’s simple: see red, get it on charge.
Checking Your Shifter Batteries (Wireless Di2)
Your wireless shifters have their own coin batteries (CR1632s), and they need checking too. Press and hold both shifter buttons at the same time for about half a second. Each shifter has its own LED that’ll tell you:
- Green: 11% to 100% battery – all good
- Red: 1% to 10% – you’ve got about a month before it dies
- No LED: Dead as a dodo.
Don’t forget to check both shifters – left and right each have their own batteries. The 105 Di2 actually has two CR1632 batteries per shifter, whilst Dura-Ace and Ultegra have one each.
Seeing red? Here’s how to replace your Di2 shifter battery. It takes a couple of minutes.
Using Your Garmin or Wahoo

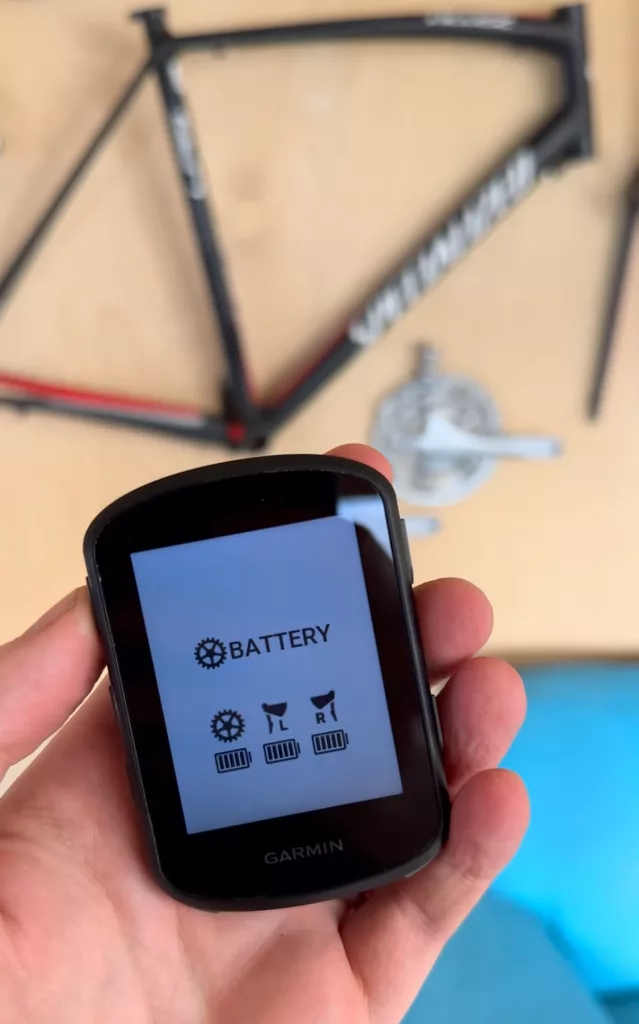

If you’re running a Garmin Edge (like most of us in the club), you can set up a Di2 data field that shows your battery levels right on screen. Dead handy when you’re out on a long ride and want to keep an eye on things without stopping.
To set it up, pair your Di2 under Settings → Sensors → Add Sensor → Shifting (press a shifter button to wake it), then add the Di2 battery field from the Gears category to one of your ride screens. Your Garmin will also warn you mid-ride if it’s getting low. There’s a full walkthrough in my guide to connecting a Garmin Edge 540 to Shimano Di2.
Using the E-Tube App
Shimano’s E-Tube Cyclist app is brilliant for this too. Connect via Bluetooth (press and hold that rear derailleur button for 0.5-2 seconds until it flashes blue), and you’ll see all your battery levels in one place. The app will even ask you to press buttons on each shifter to wake them up and get current readings.
Di2 Charging Lights Explained
This is the bit that confuses most people, me included the first time.
12-speed: plug the charging cable into the port at the back of your rear derailleur.
- Steady blue – charging
- Light off – fully charged
- Flashing red – charging error. Unplug, check the cable’s pushed fully home, and try again
11-speed: charge through the junction box with the SM-BCR2 charger (or the SM-BCR1 dock on older external-battery bikes).
- Orange – charging
- Light off – fully charged
How do I know when my Di2 is fully charged?
The light goes off. It doesn’t turn green, which is why I spent my first night with Di2 wondering if the charger was broken. If you’re not sure, unplug it and do a quick battery check: solid green and you’re good to go.
My Experience with Battery Life
I’ve found Shimano’s pretty conservative with their estimates. They reckon about 1,000km per charge for the main battery, but I regularly get closer to 1,500km. The shifter batteries? Well, those CR1632s last ages – we’re talking a couple of years of regular riding.
Winter’s a different story, though. Cold weather drains the battery noticeably quicker, so I top up more often from November onwards.
When Things Go Wrong
If your main battery gets really low (around 10%), the system will stop you using the front derailleur first, so you can still use the rear gears to get home. Once it’s completely flat, you’ll be stuck in whatever gear you’re in – not ideal if you’re facing the climb up to Colsterworth!
Quick charging tip: The main battery usually takes 1–3 hours to fully charge, depending on how flat it is and the USB plug you use (use one rated at least 5V/1A). Just plug the charging cable into the port at the back of your rear derailleur and you’re sorted. If it’s still not full after 4 hours, Shimano says to stop charging, because something’s not right.
Local Battery Hunt
Speaking of those shifter batteries – good luck finding CR1632s in Stamford! I’ve been round every shop in town, and they’re rarer than hen’s teeth. I ended up ordering a bulk pack online after being caught short before a club ride. If you’re desperate, shout up in our WhatsApp group – I’ve always got spares.
Once you’ve got them, here’s my step-by-step guide to swapping the battery.
The key thing is to check your batteries regularly, especially before longer rides. There’s nothing worse than having your Di2 pack up when you’re miles from anywhere. Check them, charge them, and keep riding!
